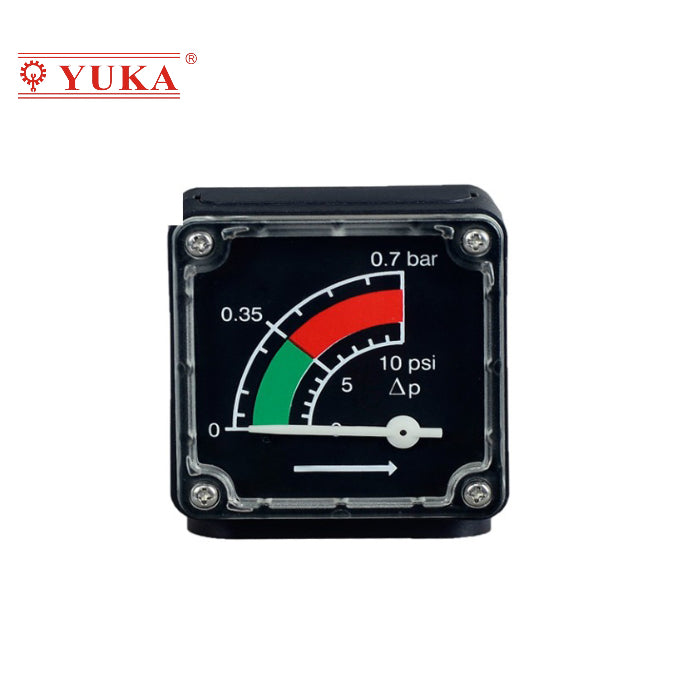

Differential Pressure Gauge

• Installed on the filter housing for indication purpose only, not a precision instrument for calibration.
• The dial has green and red zones. If the pointer points to the green zone, the filter element is in good condition and no replacement is needed.
• It measures differential pressure and shows whether the filter element is clogged prematurely.
• Filters with a flow rate of 2.8 m³/min or above shall be equipped with a differential pressure gauge.

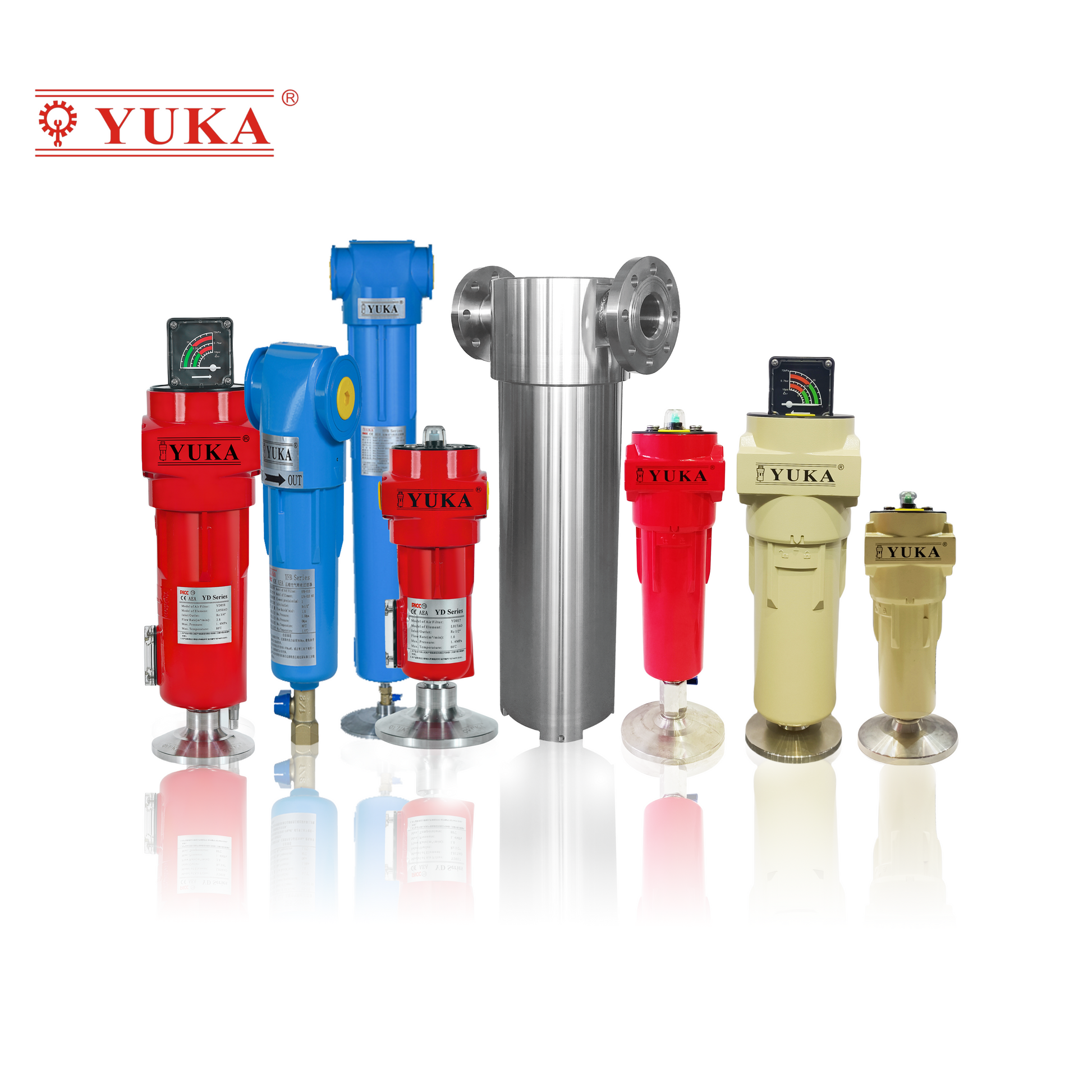

• Short base differential pressure gauge: matched with YF series
• Tall base differential pressure gauge: matched with YD and DT series
